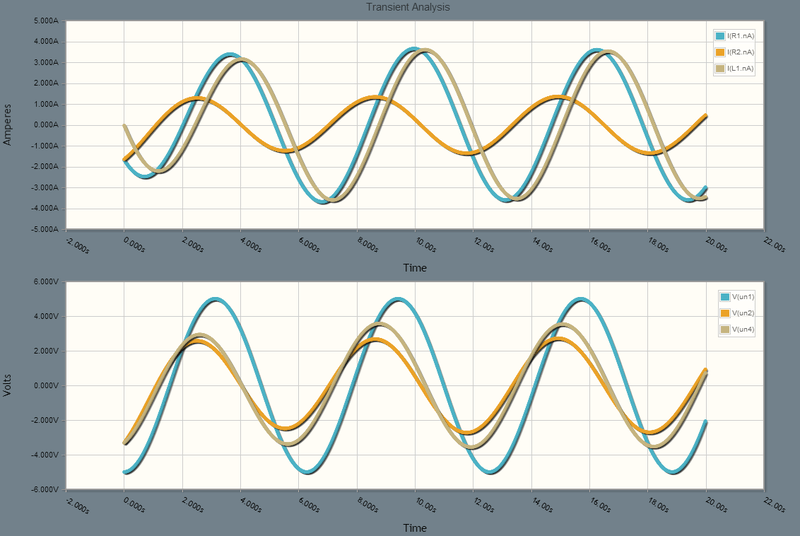

Simulation

Color	Voltage	Current
Blue	$V_{s}$	$i_{1}$
Orange	$V_{2}$	$i_{2}$
Brown	$V_{L}$	$i_{L}$

Magnitudes and phase angles are approximately right. There is lots of error. But close enough to build confidence. Would need to move the ground to see the capacitor voltage and current.

variable	real	imaginary	magnitude	radians	degrees	time domain
i1	3.70	-2.39i	4.41	-0.574	-32.9	4.41 cos(t-0.574)
i2	0.648	1.20i	1.36	1.07	61.6	1.36 cos(t + 1.07)
ic	1.32	-4.59i	4.78	-1.29	-73.9	4.78 cos(t-1.29)
iL	3.06	-3.59i	4.72	-0.866	-49.6	4.72 cos(t-0.866)
v1	3.70	-2.39i	4.41	-0.574	-32.9	4.41 cos(t-0.574)
v2	1.30	2.39i	2.72	1.07	61.6	2.72 cos(t+1.07)
vc	-2.30	-0.662i	2.39	-2.86	-164	2.39 cos(t-2.86)
vL	3.60	3.06i	4.72	0.705	40.4	4.72 cos(t+0.705)
