Circuit Idea/Demystifying gyrator circuits
< Circuit Idea
Circuit idea: Emulate actual elements by dynamic voltage sources having the same behavior.
A simulated inductor is a balanced bridge
The problem: to convert a capacitor into an inductor

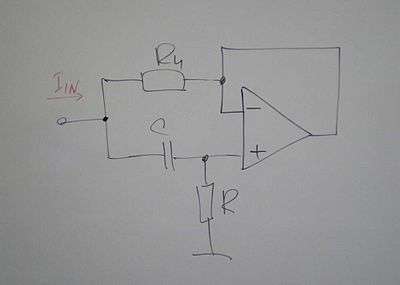

Fig. 1: How do we convert a capacitor into an inductor?
Inductors are bulky, heavy and expensive; they cannot be miniaturized. So, it would be extremely useful if we manage to replace them by capacitors. The problem is to convert a capacitor into an inductor.
